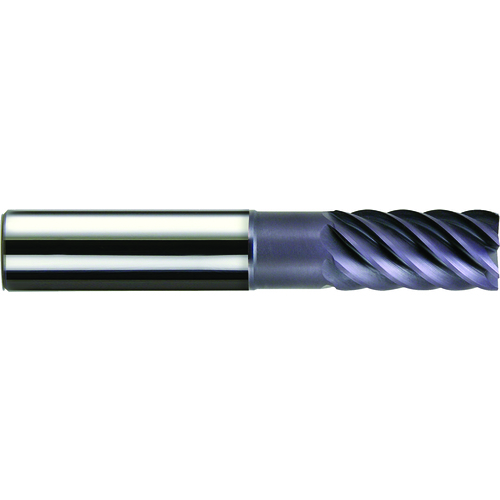

12 mm × 12 mm × 25 mm × 100 mm 0.5 mm C/R 7 Flute Single End Carbide HPE High Performance End Mill-nACo Series/List #5998M
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 25 mm | Tool Type | Single End |
| Overall Length (OAL) | 100 mm | Length Group | Extended |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiSiN | Style | HPE Ultra-High Performance End Mills |
| Flute Count (NOF) | 7 | Decimal Equivalent | 0.4724″ |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 5998M |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.50 mm |
| Usable Length (LU) | 25 mm |
Product Features
| Country of Origin | United States |
Shipping Info
Package Length
4.75000
Package Width
.50000
Package Weight
0.352
