3/8-2FL-SE-STUB ALTIN

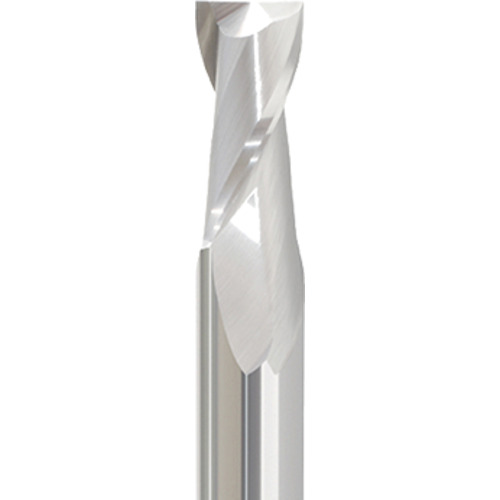

SQ End Mill; 3/8″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 202
| Cutting Diameter (DC) | 3/8″ | Applicable Material | | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | Slotting | Profiling | Plunging |
| Depth of Cut Maximum (APMX) | 5/8″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | AlTiN | Series/List # | 202 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.11
