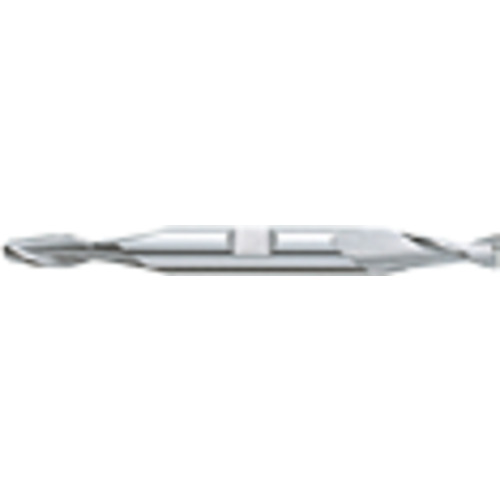

5/32 × 3/8 × 3 OAL 2 Flute Double End Square End Mill
SQ End Mill; 5/32″ Dia. × 7/16″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide
| Cutting Diameter (DC) | 5/32″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 7/16″ | End Shape | Square |
| Overall Length (OAL) | 3″ | Tool Type | Center Cut|Double-End |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.15625″ |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.11
