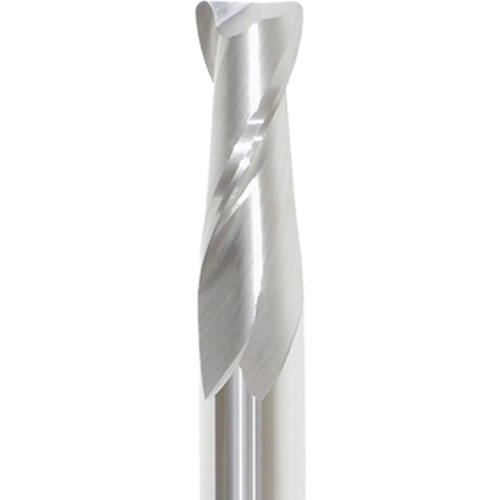

5/16-2FL-SE-REG w/.030R AlTiN
Corner Radius End Mill; 5/16″ Dia. × 13/16″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 204
| Cutting Diameter (DC) | 5/16″ | Application | Profiling | Plunging | Profile Cutting | Radiusing | Radius Slotting |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 13/16″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 2-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3125″ |
| Coating | AlTiN | Series/List # | 204 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| End Shape | Corner Radius | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.090
