7/32-4FL-SE-REG

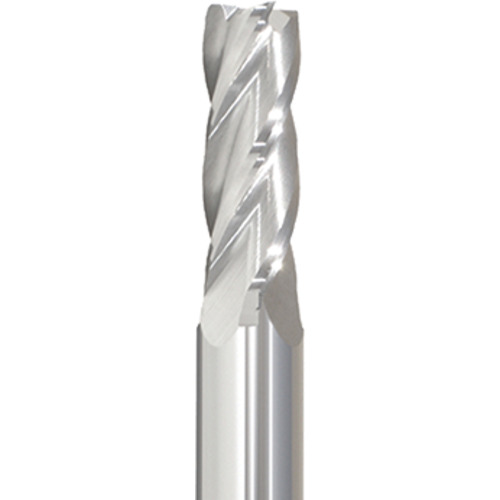

SQ End Mill; 7/32″ Dia. × 5/8″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 206
| Cutting Diameter (DC) | 7/32″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Application | Slotting | Profiling | Ramping |
| Depth of Cut Maximum (APMX) | 5/8″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 2-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.2188″ |
| Coating | Uncoated | Series/List # | 206 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
