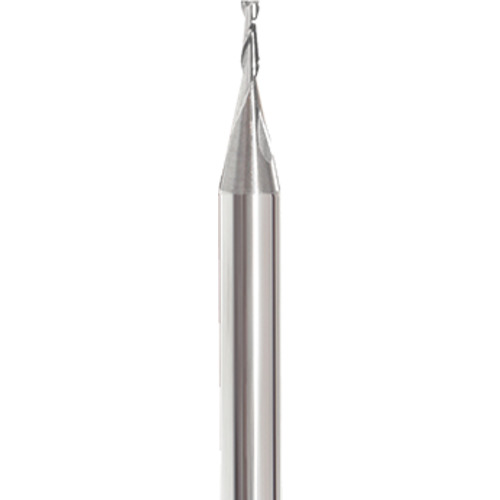

.056-2FL-SE-REG-AlTiN
| Cutting Diameter (DC) | 0.056″ | Applicable Material | | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Application | Slotting | Profiling | Plunging |
| Depth of Cut Maximum (APMX) | 0.168″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 1-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.056″ |
| Coating | AlTiN | Series/List # | 250 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.010
