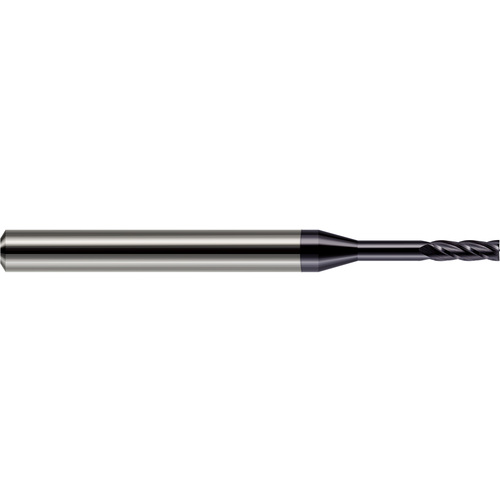

.020 CB SQ 7XRCH 4FL ALTN
| Cutting Diameter (DC) | 0.02″ | Usable Length (LU) | 9/64″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.0192″ |
| Depth of Cut Maximum (APMX) | 0.06″ | Neck Length (LN) | 0.08″ |
| Overall Length (OAL) | 1-1/2″ | Length Group | 7D |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.250
