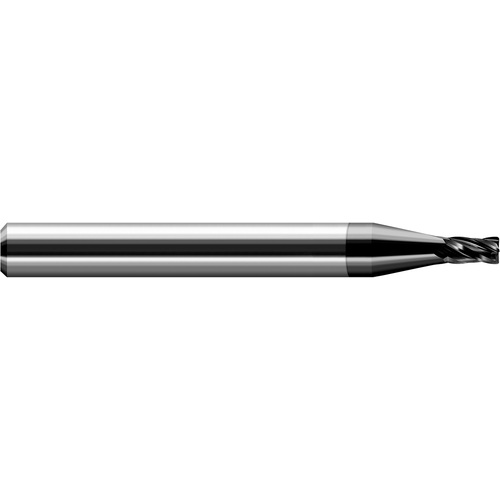

.062X.010R STB CR 4FL DMD
| Cutting Diameter (DC) | 1/16″ | Corner Radius (RE) | 0.01″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | 1.5D |
| Depth of Cut Maximum (APMX) | 3/32″ | Flute Type | Spiral |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.062″ |
| Coating | DLC | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 3/32″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.250
