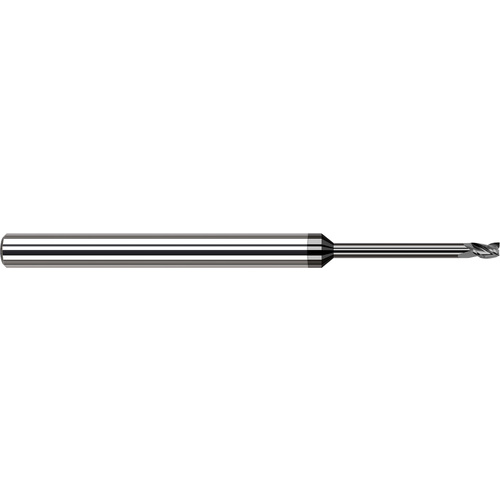

.040 CB STB 10XRCH EM DMD
| Cutting Diameter (DC) | 0.04″ | Usable Length (LU) | 0.4″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.0385″ |
| Depth of Cut Maximum (APMX) | 0.06″ | Length Group | 10D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Amorphous Diamond | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.250
