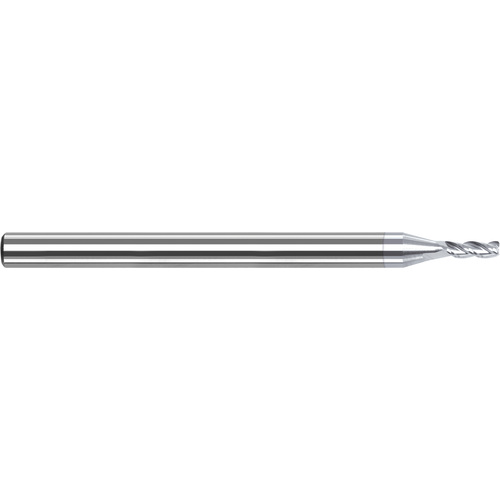

.187X.030R 1.5XLOC 3FL TI

Item # 5551295
UNSPSC: 27112803
Brand: Harvey Tool
MFG#: 893912-C8
Cutting Diameter (DC) 3/16″ Applicable Material | Aluminum / Non-Ferrous Materials |
Connection Diameter Machine Side (DCONMS) 3/16″ Corner Radius (RE) 0.03″
Depth of Cut Maximum (APMX) 0.285″ Length Group 1.5D
Overall Length (OAL) 2″ Flute Type Spiral
Cutting Edge Material Carbide Body Material Carbide
Coating TiB2 Decimal Equivalent 0.188″
Flute Count (NOF) 3 Measurement Type Inch
Flute Helix Angle (FHA) 42 Degrees Shank Size (SS) 3/16″
Shank Type Round Corner Radius (RE) / Chamfer Width (CHW) 0.03″
End Shape Corner Radius Cutting Direction (HAND) Right Hand
Usable Length (LU) 0.285″ Single / Double End Single End

Product Features

Country of Origin USA
