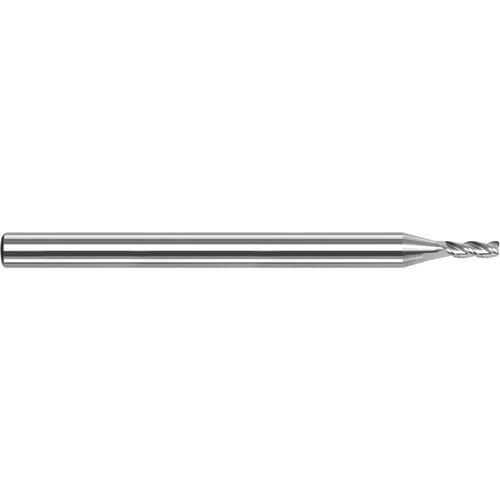

.187X.030R VH 1.5XLOC 3FL
| Cutting Diameter (DC) | 3/16″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 0.285″ | Length Group | 1.5D |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Shank Size (SS) | 3/16″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.285″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.250
