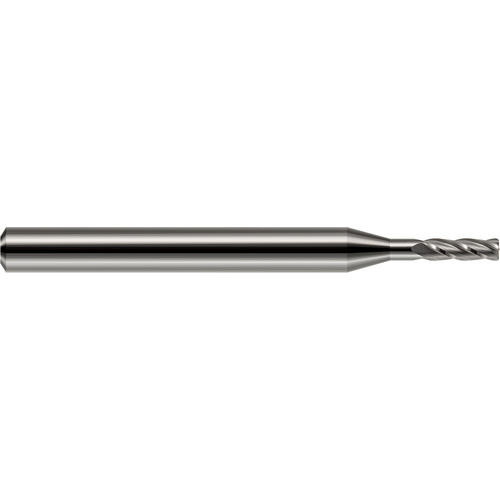

.250X.010R 5XLNGRCH CR4FL
Corner Radius End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 0.01″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.246″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-1/4″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
