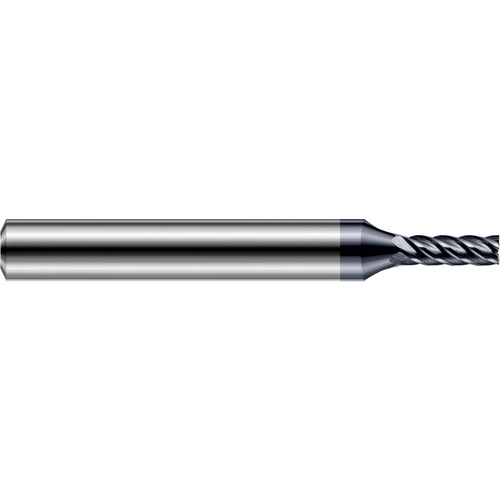

.156 HD ML 4XLOC 5FL NANO
SQ End Mill; 5/32″ Dia. × 5/8″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/32″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 5/8″ | Length Group | 4D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.156″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.05
