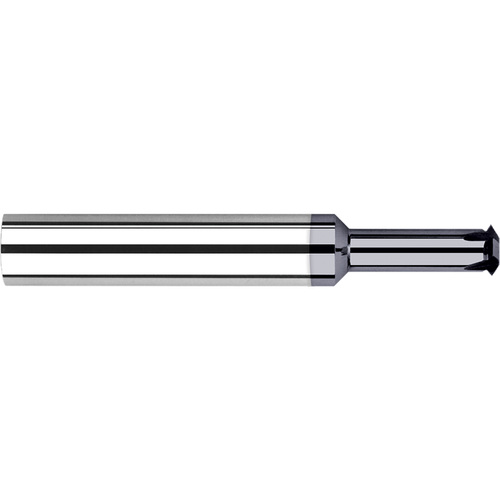

Thread Mill; 5/16″ ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; AlTiN
Thread Mill; 5/16″ ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; AlTiN
| Thread Size | 5/16″ | Threads per Inch Maximum (TPIX) | 48 |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Flute Type | Spiral |
| Cutting Diameter (DC) | 0.24″ | Measurement Type | Inch |
| Functional Length (LF) | 5/8″ | Tool Type | Single Form |
| Overall Length (OAL) | 2-1/2″ | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | AlTiN | Thread Form Type (THFT) | UN60 |
| Threads per Inch Minimum (TPIN) | 16 |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.05
