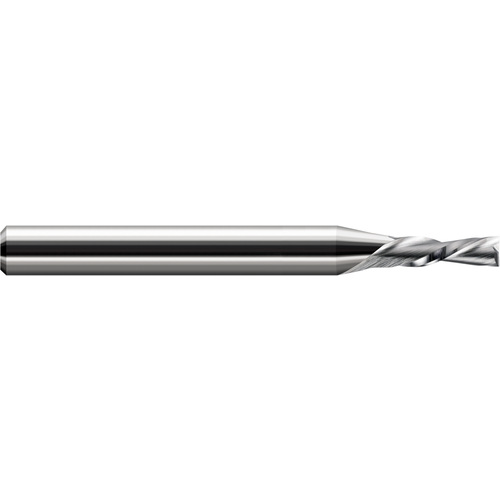

.078 WOODWNCUT 3X LOC 2FL
Square End Mill; 5/64″ Dia. × 15/64″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 5/64″ | Usable Length (LU) | 15/64″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Other Non-Metallic Materials | |
| Depth of Cut Maximum (APMX) | 15/64″ | Length Group | 3D |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.078″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.250
