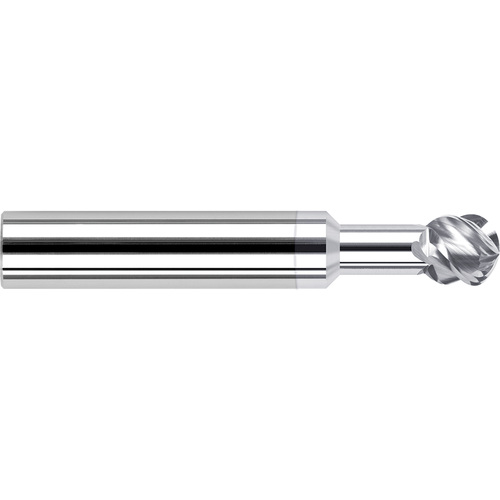

Ballnose End Mill; 1/4″ Dia. × 0.213″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiB2
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 1.213″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.125″ |
| Depth of Cut Maximum (APMX) | 0.213″ | End Shape | Ball Nose |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiB2 | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Center Cutting | No |
| Flute Helix Angle (FHA) | 45 Degrees | Single / Double End | Single End |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 270 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.250
