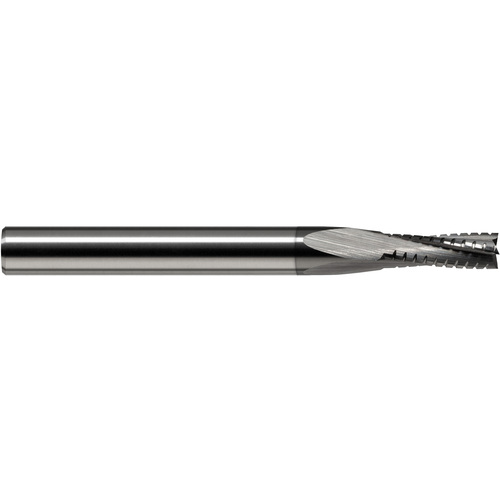

.093 CVD CFRP 3X LOC 3FL
| Cutting Diameter (DC) | 3/32″ | Applicable Material | | Other Non-Metallic Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | 3D |
| Depth of Cut Maximum (APMX) | 0.279″ | Flute Type | Spiral |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.093″ |
| Coating | CVDDIA | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 20 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
| Usable Length (LU) | 0.279″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.250
