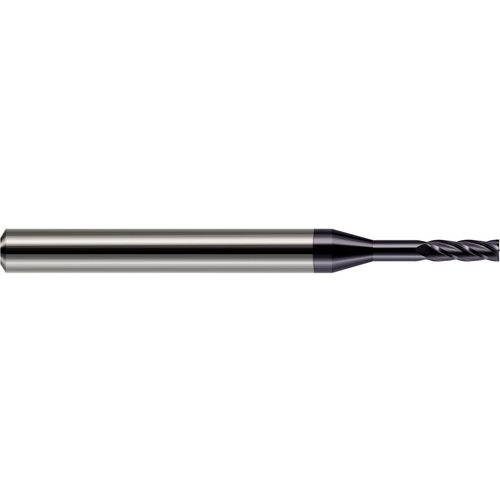

.093CB 6XLNG RCH 4FL ALTN
| Cutting Diameter (DC) | 3/32″ | Neck Diameter (DN) | 0.0915″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Length (LN) | 0.306″ |
| Depth of Cut Maximum (APMX) | 0.279″ | Length Group | 6D |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.093″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 0.585″ |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
0.02
