.125 CB 7X LNG RCH EM 4FL

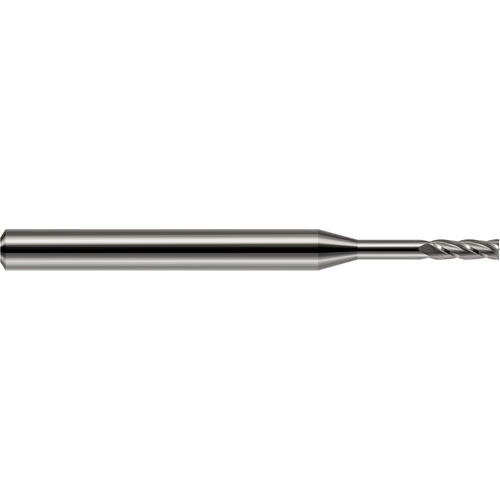

SQ End Mill; 1/8″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/8″ | Neck Diameter (DN) | 0.121″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Length (LN) | 1/2″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Length Group | 7D |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 7/8″ |
Product Features
| Country of Origin | USA |
