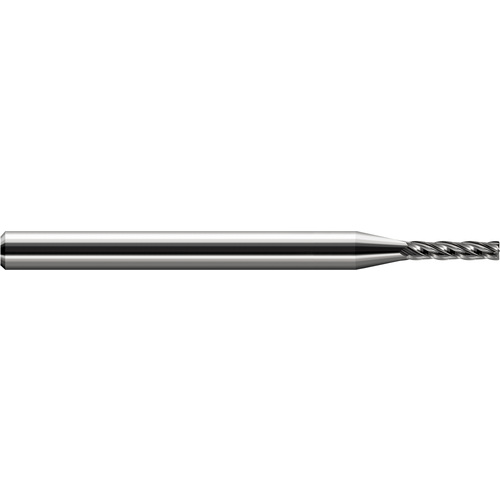

.375X.010R 5X LNGFLT 4FL

Item # 5546395
UNSPSC: 27112803
Brand: Harvey Tool
MFG#: 800810
Cutting Diameter (DC) 3/8″ Corner Radius (RE) 0.01″
Connection Diameter Machine Side (DCONMS) 3/8″ Length Group 5D
Depth of Cut Maximum (APMX) 2″ Flute Type Spiral
Overall Length (OAL) 4″ Body Material Carbide
Cutting Edge Material Carbide Decimal Equivalent 0.375″
Coating Uncoated Measurement Type Inch
Flute Count (NOF) 4 Shank Size (SS) 3/8″
Flute Helix Angle (FHA) 30 Degrees Corner Radius (RE) / Chamfer Width (CHW) 0.01″
Shank Type Round Cutting Direction (HAND) Right Hand
End Shape Corner Radius Single / Double End Single End
Usable Length (LU) 2″

Product Features

Country of Origin USA
