3MM VHLX 8X RCH 3FL TIB2

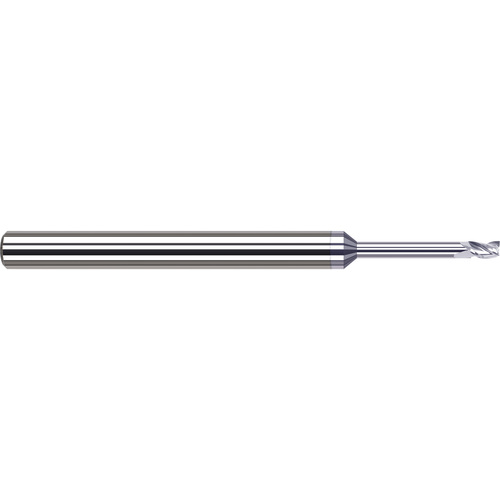

SQ End Mill; 3 mm Dia. × 4.5 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 3 FL ; Carbide ; TiB2
| Cutting Diameter (DC) | 3 mm | Usable Length (LU) | 24 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 4.5 mm | Neck Diameter (DN) | 2.96 mm |
| Overall Length (OAL) | 50 mm | Length Group | 8D |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | TiB2 | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 42 Degrees | Shank Size (SS) | 4 mm |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.05
