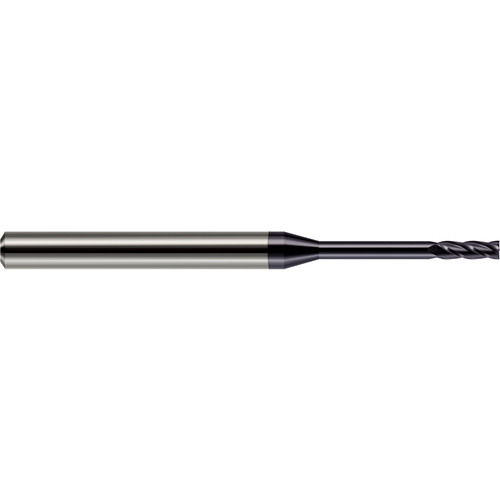

Miniature End Mills - Long Reach, Standard Flute - 0.0500″ Cutter Diameter × 0.1500″ Length of Cut × 0.5000″ (1/2″) Reach Carbide Square End Mill, 4 Flutes, AlTiN Coated
SQ End Mill; 0.05″ Dia. × 0.15″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.05″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/2″ |
| Depth of Cut Maximum (APMX) | 0.15″ | Neck Length (LN) | 0.35″ |
| Overall Length (OAL) | 1-1/2″ | Length Group | Long Reach |
| Cutting Edge Material | Carbide | Flute Type | Standard |
| Coating | AlTiN | Decimal Equivalent | 0.05″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.009
