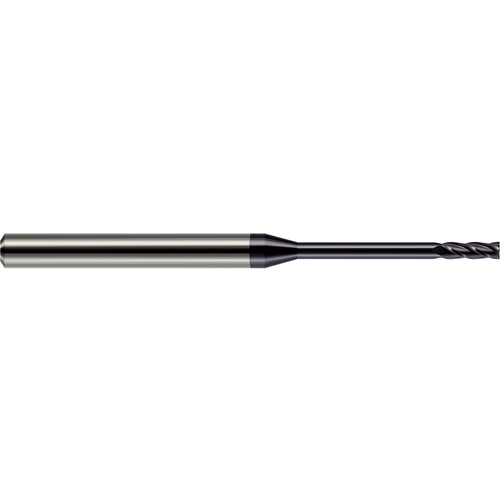

.062D CARB 12X LNG RCH
SQ End Mill; 1/16″ Dia. × 0.186″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 0.186″ | Neck Length (LN) | 0.564″ |
| Overall Length (OAL) | 2″ | Length Group | 12D |
| Cutting Edge Material | Carbide | Flute Type | Standard |
| Coating | AlTiN | Decimal Equivalent | 0.0625″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
