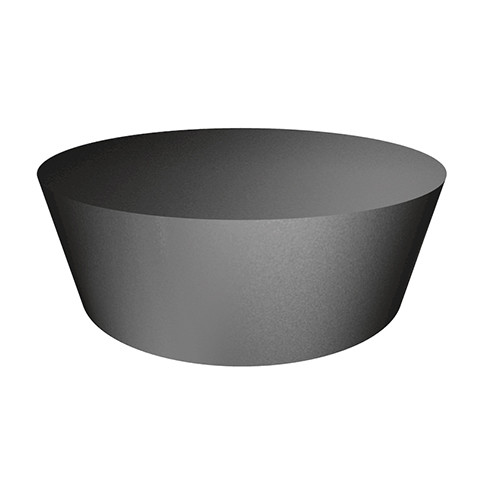

RPG 32 E02 IS15
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Round Face & Turn | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Min D.O.C. | 0.008″ |
| Insert Style | RPG | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 32 E | Min. Turning Feed (ft(min)) | 0.0035 ″/rev |

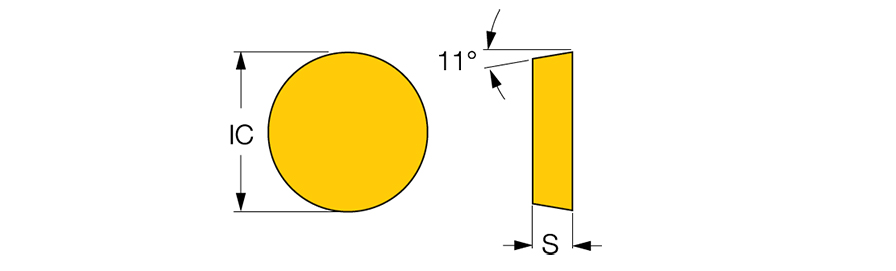

| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0177 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Ceramic | Measurement Type | Inch |
| Grade | IS15 | Body Material | Carbide |
Product Features
| Family Description | Positive round ceramic inserts for machining cast iron and heat-resistant alloys | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.8
