4QS-DXGQ 222SPR BXA20

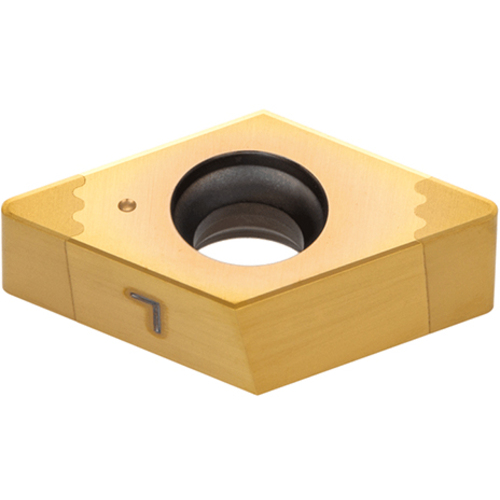

Double sided 55 deg rhombic CBN insert for finishing hardened steel, applied WavyJoint brazing technology
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |

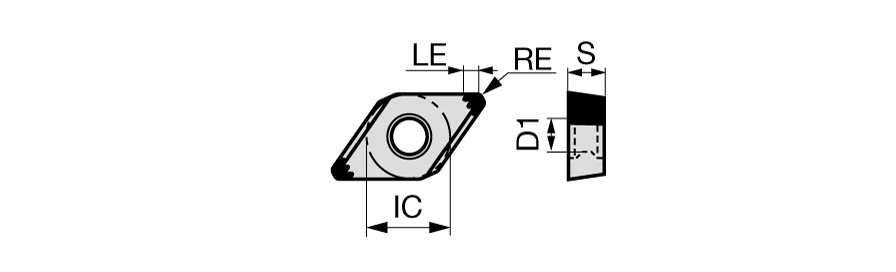

| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Material | PCBN | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Chip Breaker Type | MFT Wavy-FT |
| Grade | BXA20 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.106″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Cutting Edge Effective Length (LE) | 0.063″ |
Product Features
| Family Description | Double sided 55 deg rhombic CBN insert for finishing hardened steel, applied WavyJoint brazing technology | Country of Origin | Japan |
