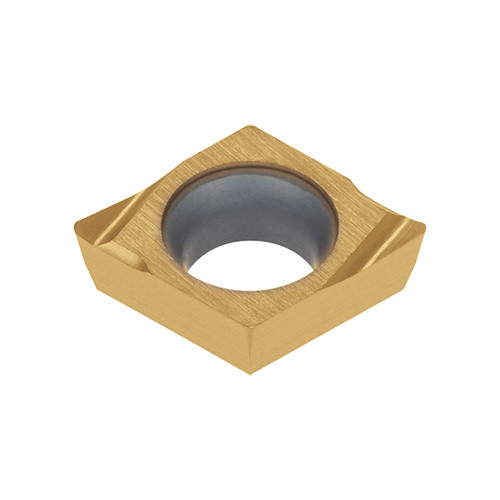

EPGT 4.51.80 L-W08 SH730
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.0079″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0394″ |

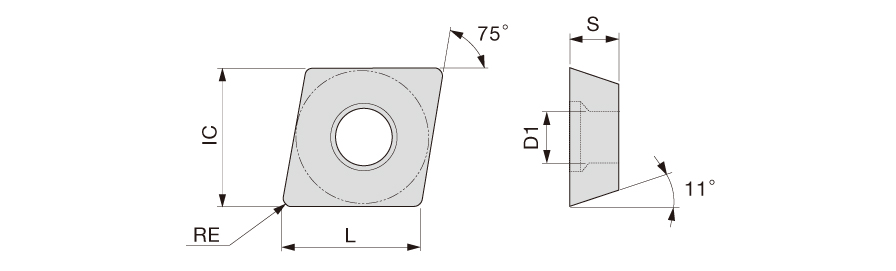

| Corner Radius (RE) | 0.0039″ | Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Cutting Edge Length (L) | 0.146″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.055″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.141″ | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | W08 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH730 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.075″ | Cutting Edge Effective Length (LE) | 0.135″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11 deg relief angle, G class, 75 deg rhombic insert, 1ead type chipbreaker for finishing | Country of Origin | JAPAN |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.033
