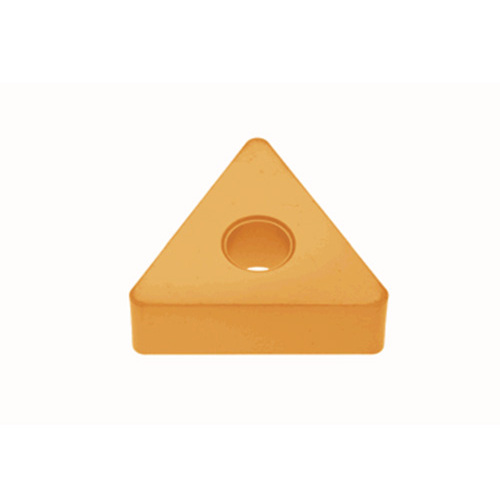

TNMA 431 T5105
Negative relief ang., M/G class, triangular insert, without chipbreaker for finishing to medium cutting
| Applicable Material | | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0004″ |

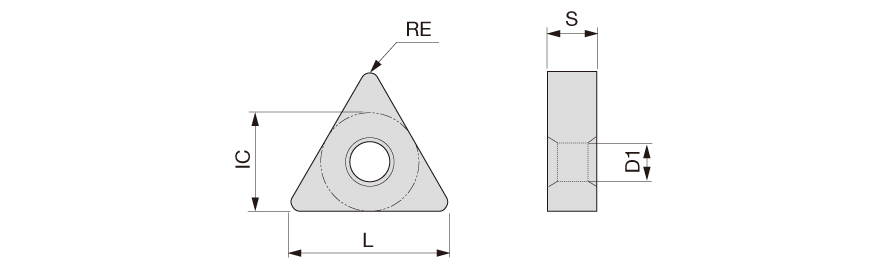

| Corner Radius (RE) | 0.016″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 0.866″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | FT |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T5105 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.811″ |
Product Features
| Family Description | Negative relief ang., M/G class, triangular insert, without chipbreaker for finishing to medium cutting | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.353
