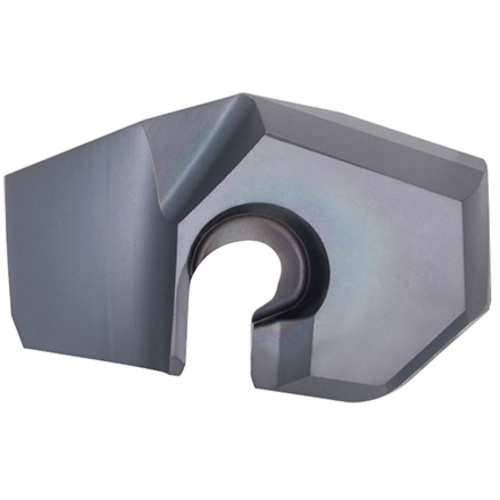

SMP1165 AH9130

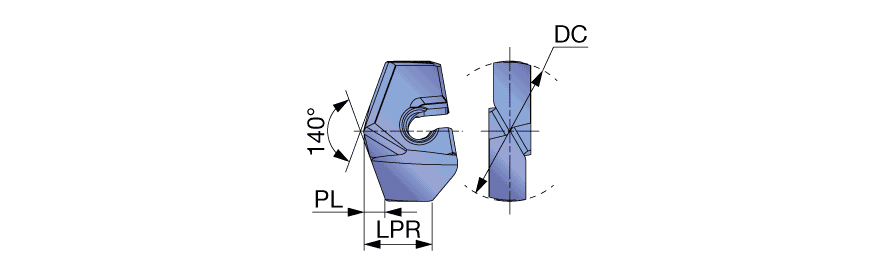

| Cutting Diameter (DC) | 1.1654″ | Insert Seat Size Code (SSC) | 29 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | General Drilling | | Overall Length (OAL) | 0.685″ |
| Grade | AH9130 | Point Length (PL) | 0.183″ |
| Protruding Length (LPR) | 0.436″ | Body Material | Carbide |
Product Features
| Family Description | DrillForceMeister SMP Drill heads for indexable head drill | Country of Origin | Japan |
| Remarks | Head diameter (DC): 20.0 29.9 / Head diameter tolerance: +0.014 / 0.015 Head diameter (DC): 30.0 41.0 / Head diameter tolerance: +0.014 / 0.02 |
