HPO11R032MM16-03
High precision shoulder square endmills (TungRec) with TungFlex, carrying ASMT/ASGT11 inserts

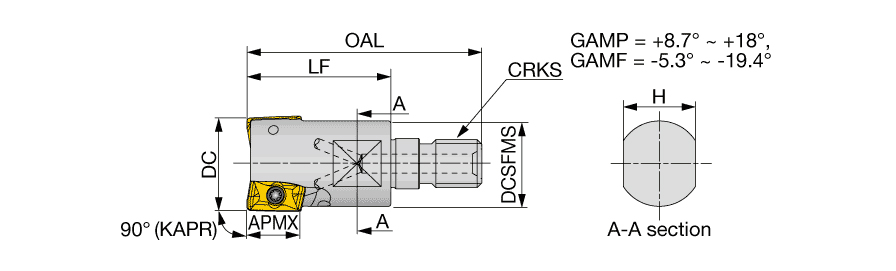

| Cutting Diameter (DC/DCX) | 32 mm | Functional Length (LF) | 40 mm |
| Cutting Diameter (DC) | 32 mm | Tool Type | 90 indexable endmills |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 10.6 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Body Material | Steel |
| Application | | Shoulder Milling | | Connection Retention Knob Thread Size (CRKS) | M16 |
| Connection Diameter Machine Side (DCONMS) | 28.8 mm | Shank Height (H) | 22 mm |
| Master Insert Identification (MIID) | ASMT11T304PDPR-MJ | Cutting Diameter Maximum (DCX) | 32 mm |
Product Features
| Family Description | High precision shoulder square endmills (TungRec) with TungFlex, carrying ASMT/ASGT11 inserts | Country of Origin | JAPAN |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
0.586
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
