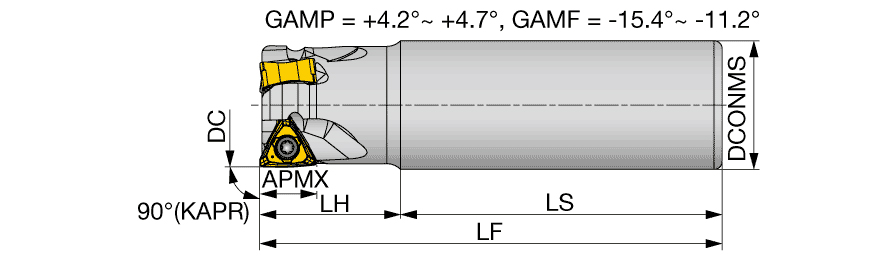

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 2-1/4″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 4-1/2″ |
| Cutting Item Count (CICT) | 6 | Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 0.256″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4-1/2″ | Measurement Type | Inch |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Shank Length (LS) | 2-1/4″ |
| Master Insert Identification (MIID) | TNMU070308PER-MJ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features

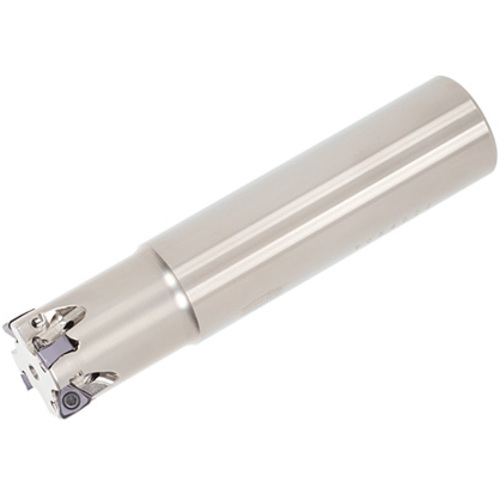

| Family Description | Square Shoulder milling cutters with double-sided triangle insert; Shank Type | Country of Origin | JAPAN |
| Remarks | When using corner radius R0.4 inserts, add 0.22 mm to the LF and LH dimensions. |
