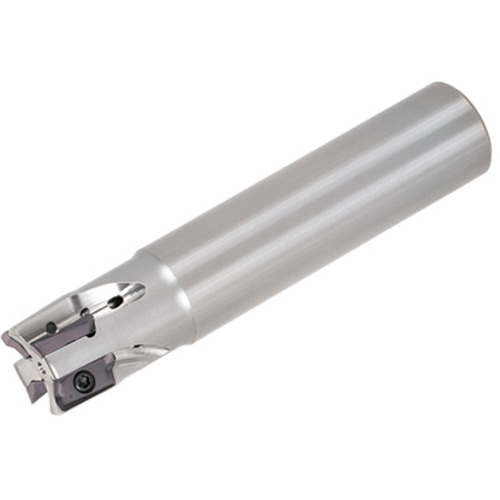

EPAV12U0.75W0.75R03
Indexable End Mill; 3/4″ Dia. × 0.453″ LOC × 3/4″ Shank Dia. × 3.281″ OAL ; Weldon Shank ; 90 Degrees

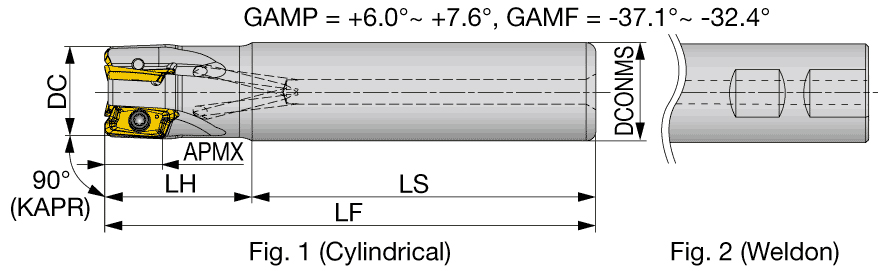

| Cutting Diameter (DC/DCX) | 3/4″ | Master Insert Identification (MIID) | AVMT120408PDER-MM |
| Cutting Diameter (DC) | 3/4″ | Head Length (LH) | 1-1/4″ |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 3.281″ |
| Depth of Cut Maximum (APMX) | 0.453″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3.281″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Additional Fees and Notes
0
Package Weight
0
Related Documentation

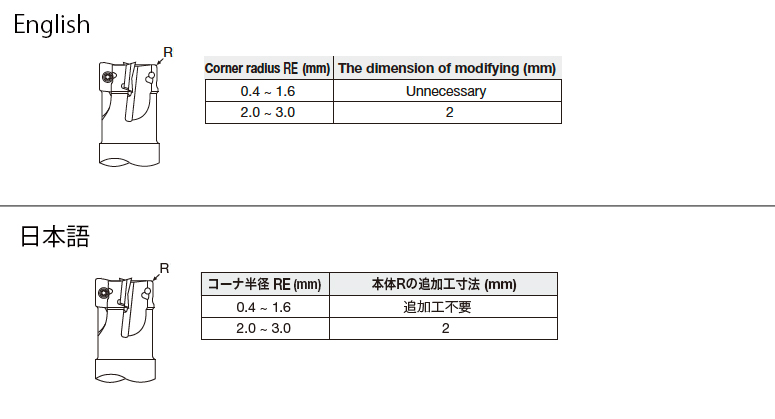

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
