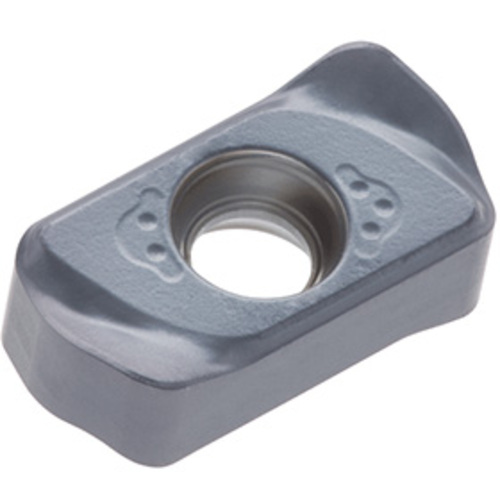

LNGU0303ZER-MH AH8005
Double sided insert with 4 edges and MH chipbreaker, Robust cutting edge type.
| Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Grade | AH8005 |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

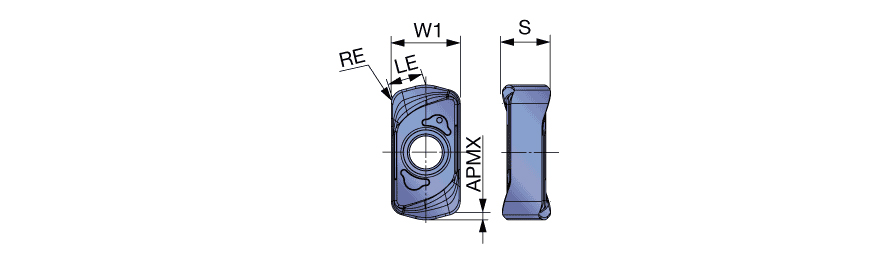

| Corner Radius (RE) | 0.0472″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.039″ | Number of Cutting Edges | 4 |
| Insert Width (W1) | 0.236″ | Cutting Edge Effective Length (LE) | 0.126″ |
| Inscribed Circle Diameter (IC) | 0.236″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.169″ | Body Material | Carbide |
| Coating | AlTiN |
Product Features
| Family Description | Double sided insert with 4 edges and MH chipbreaker, Robust cutting edge type. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.090
