QSER12-3T26
Grooving Toolholder ; 3/4″ Shank Height ; 3/4″ Shank Width ; 0.098″ CW Min. ; 0.137″ CW Max. ; Right Hand ; Steel

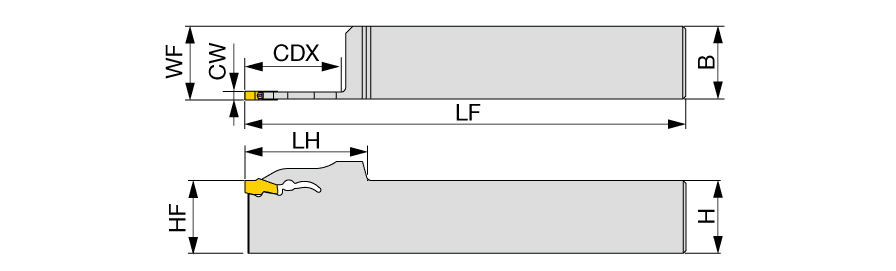

| Cutting Width Minimum (CWN) | 0.098″ | Head Length (LH) | 1.417″ |
| Cutting Width Maximum (CWX) | 0.137″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 3/4″ | Application | | External grooving | Parting off | |
| Shank Width (B) | 3/4″ | Body Material | Steel |
| Functional Width (WF) | 0.764″ | Tool Type | Turn-Groove Tools |
| Functional Length (LF) | 5″ | Measurement Type | Inch |
Product Features
| Family Description | External toolholder for grooving and parting | Country of Origin | JAPAN |
