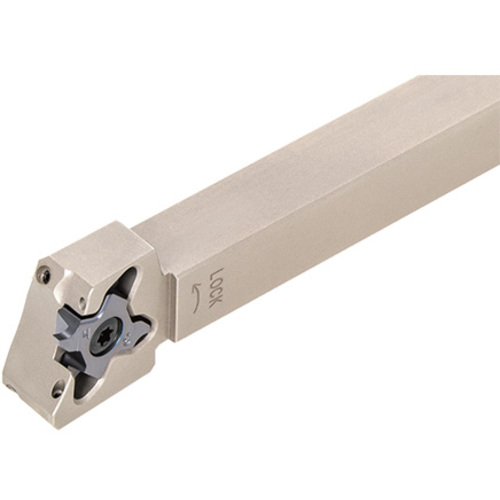

STCL08F18-CHP
External grooving and threading tool with high pressure coolant channels, for swiss lathes

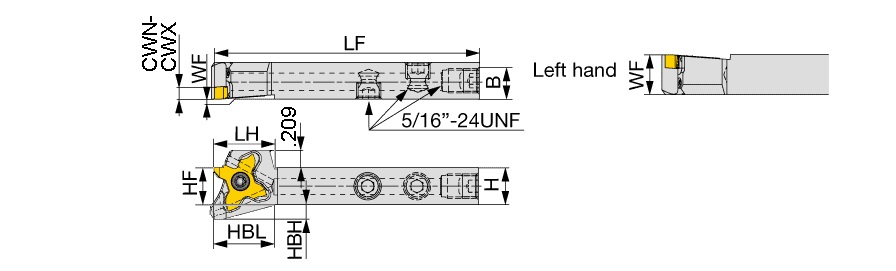

| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.013″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.236″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 3.383″ | Measurement Type | Inch |
| Head Length (LH) | 0.728″ | Insert Seat Size Code (SSC) | 18 |
| Cutting Depth Maximum (CDX) | 0.138″ | Functional Width (WF) | 1/2″ |
| Overall Height (OAH) | 1/2″ | Tool Assembly Length (LTA) | 1.122″ |
| Application | | Ext Threading | External grooving | |
Product Features
| Family Description | External grooving and threading tool with high pressure coolant channels, for swiss lathes | Country of Origin | JAPAN |
| Remarks | The right hand insert (TC*18R...) is used for the right hand toolholders (STCR...), and the left hand insert (TC*18L...) is used for the left hand toolholders (STCL...). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.000
