.090-0777T30808753.1

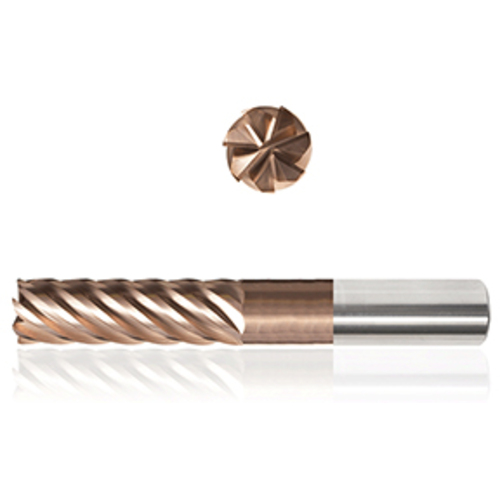

7 Flute Endmill for Finishing, Variable Pitch, Reduced Neck,Center Cutting, 40° Helix, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs.
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Depth of Cut Maximum (APMX) | 7/8″ | Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 3″ | Grade | H5003 Vulcan |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 0.48″ |
| Coating | VARIANTIC | Tool Type | Solid Carbide Endmill |
| Flute Count (NOF) | 7 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1-3/8″ | Series/List # | 777 |
Product Features
| Family Description | 7 Flute Endmill for Finishing, Variable Pitch, Reduced Neck,Center Cutting, 40° Helix, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
