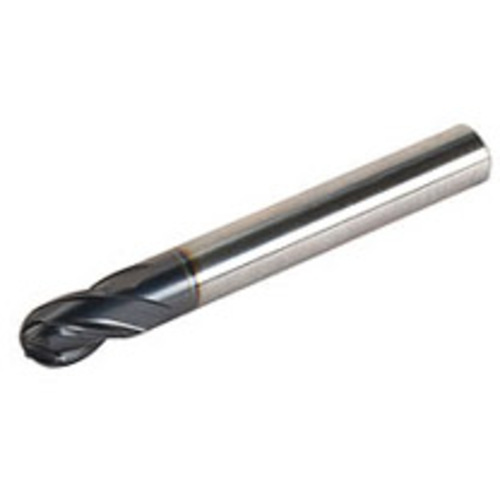

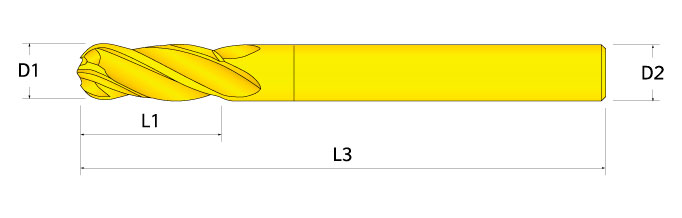

47B-1806R5RB20 IN2005
| Cutting Diameter (DC) | 0.188″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 0.188″ | Corner Radius (RE) | 0.094″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 2″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Usable Length (LU) | 5/8″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.031
