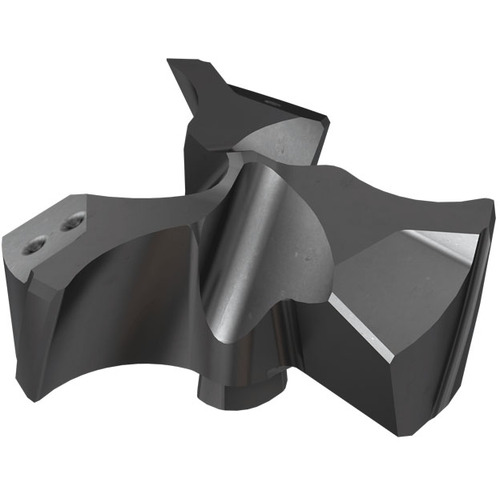

F3P 0614-IQ IC908
Exchangeable 3 flute flat drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K).

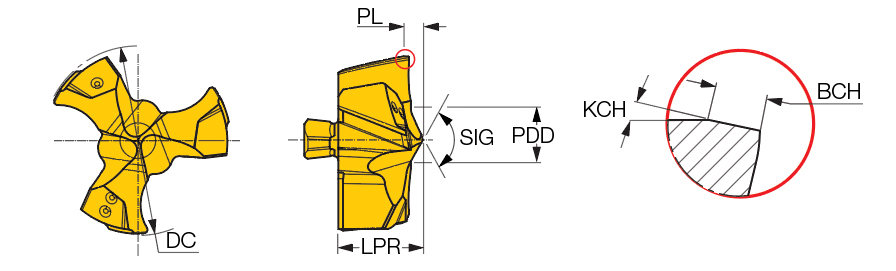

| Cutting Diameter (DC) | 0.614″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Point Length (PL) | 0.05708″ |
| Grade | IC908 | Point Angle (SIG) | 125 Degrees |
| Protruding Length (LPR) | 0.256″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 15 | Chamfer Angle | 15 Degrees |
| Functional Length (LF) | 0.199″ | Body Material | Carbide |
Product Features
| Family Description | Exchangeable 3 flute flat drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). | Country of Origin | Israel |
| Remarks | For nearly flat bottom hole applications |
Shipping Info
Package Weight
0.026
