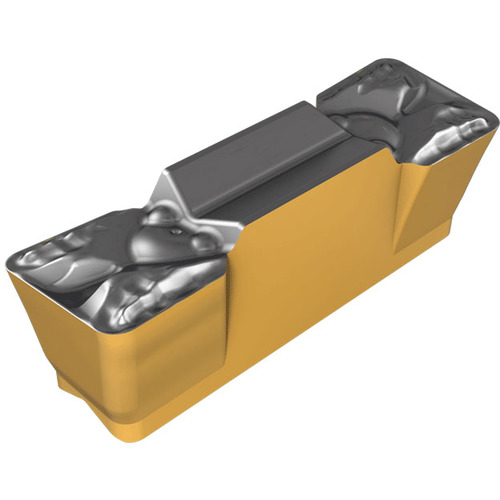

GRIP 4004T IC808
Double-ended inserts, with an optimized chipbreaker for turning & grooving in external, internal and face applications.

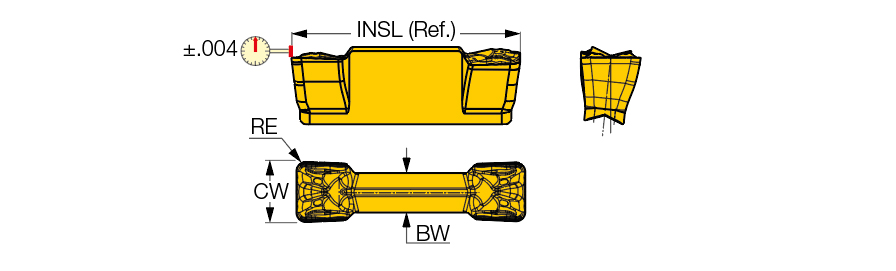

| Cutting Width (CW) | 0.157″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Groove & Turn | Int. Grooving | Parting | |
| Corner Radius (RE) | 0.0157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.748″ | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC808 | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Double-ended inserts, with an optimized chipbreaker for turning & grooving in external, internal and face applications. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.012
