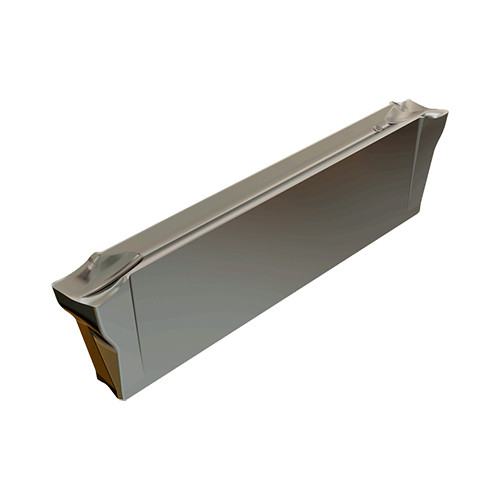

DGR 3102J-6D IC1030
First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. JS-type has a sharp corner.
| Cutting Width (CW) | 0.122″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Overall Length (OAL) | 0.827″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ | Chip Breaker Type | J |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+TiN | Angle | 12 Degrees |
| Grade | IC1030 | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
Product Features
| Family Description | First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. JS-type has a sharp corner. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.012
