GIMY 1260 IC808
Utility single-ended inserts Y-type chipformers, used for deep external grooving and turning at low-to-medium feeds. The full radius inserts can cut arcs to 250s.

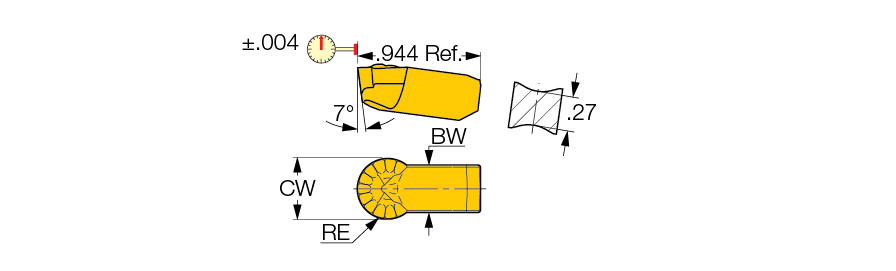

| Cutting Width (CW) | 0.472″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | Y |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.945″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Feed | 0.0339 inch/rev | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC808 | Threads per Inch (TPI) | 8 |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | | Height | 0.344″ |
Product Features
| Family Description | Utility single-ended inserts Y-type chipformers, used for deep external grooving and turning at low-to-medium feeds. The full radius inserts can cut arcs to 250s. | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Length
5.50000
Package Width
2.22500
Package Height
.76200
Package Weight
0.060
