VBMT 221 PS T9125
Positive 5deg relief ang., M class, 35deg rhombic insert, for finishing to medium cutting

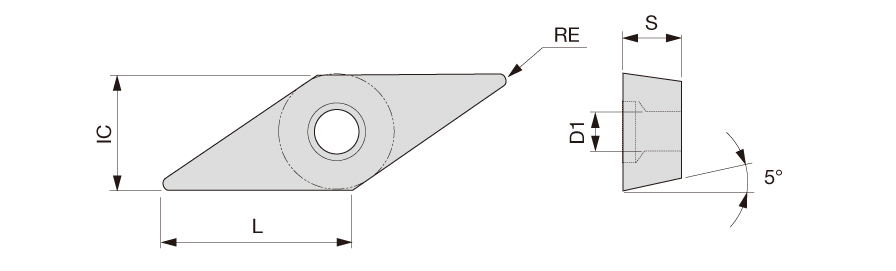

| Applicable Material | Steel | | Min D.O.C. | 0.0196″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0984″ |
| Insert Style | VBMT | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Corner Radius (RE) | 0.016″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 221 | Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Length (L) | 0.441″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | PS |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | 60° Triangle |
| Grade | T9125 | Series/List # | VBMT 221-PS |
| Fixing Hole Diameter (D1) | 0.11″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | Positive 5deg relief ang., M class, 35deg rhombic insert, for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.082
