CNMG 331-M3P IC8150

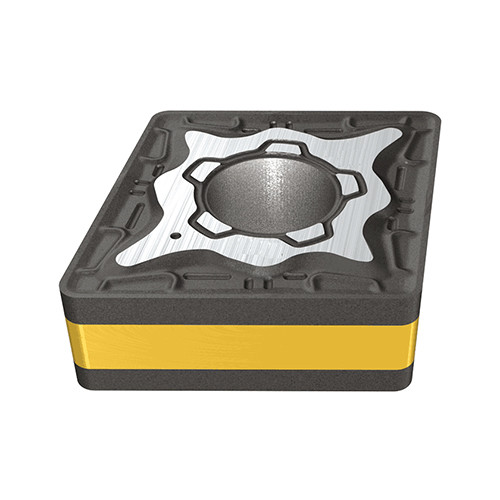

Double-sided 80° rhombic inserts, for medium machining conditions on steel. Low cutting forces due to positive rake, provide smooth cutting.
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.016″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Style | CNMG | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |

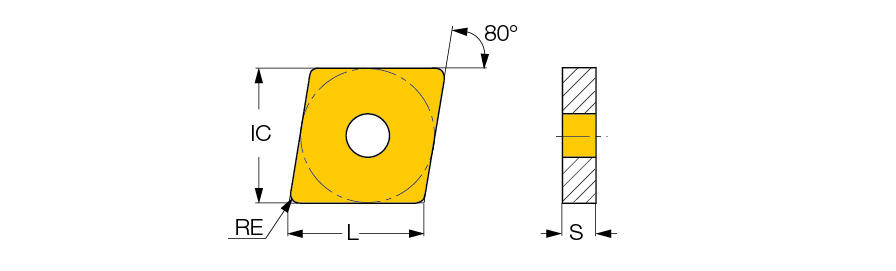

| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 090 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.381″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | M3P |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiCN+Al2O3+TiCN+TiN | Series/List # | CNMG 331-M3P |
| Grade | IC8150 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided 80° rhombic inserts, for medium machining conditions on steel. Low cutting forces due to positive rake, provide smooth cutting. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.039
