.140 HI-HLX MA FINISHER-5X LOC-NANO

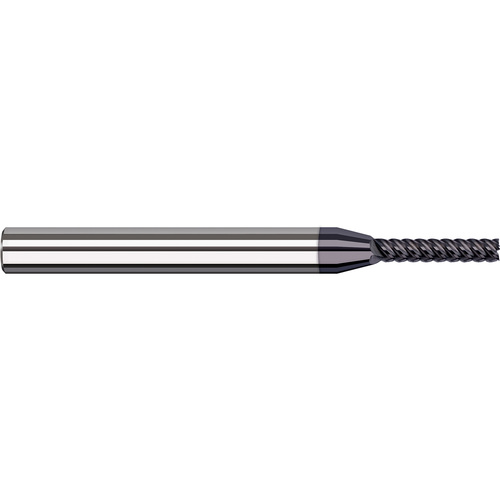

Square End Mill; 9/64″ Dia. × 3/4″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 9/64″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | 5D |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.141″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 44 Degrees | Shank Size (SS) | 3/16″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 3/4″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.043
