1.4MM D SQ V-HELIX3X LOC-3FL-NANO

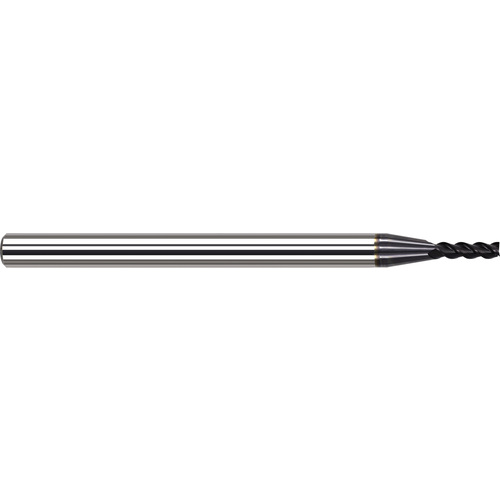

Square End Mill; 1.4 mm Dia. × 4 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1.4 mm | Usable Length (LU) | 4 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 4 mm | Length Group | 3D |
| Overall Length (OAL) | 50 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Shank Size (SS) | 4 mm |
| Flute Helix Angle (FHA) | 34 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.020
