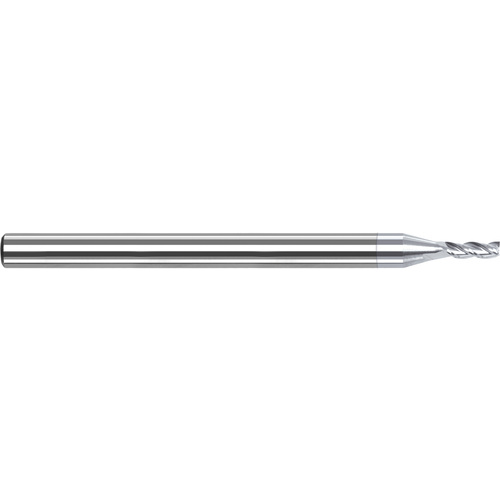

.040 SQ V-HELIX NF-5X
| Cutting Diameter (DC) | 0.04″ | Usable Length (LU) | 13/64″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 13/64″ | Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiB2 | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 42 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
0.016
