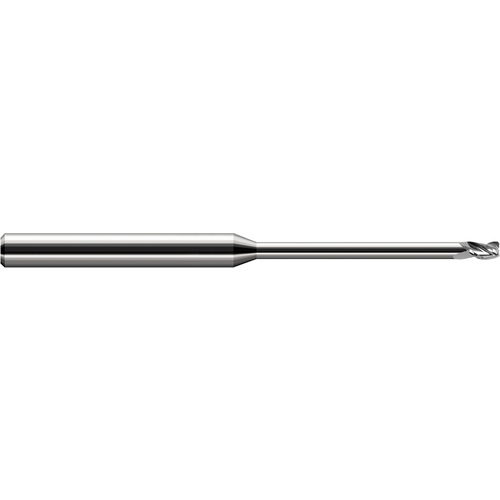

.062 DIAX.020R STB FL 12X RCH EM
Corner Radius End Mill; 1/16″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/16″ | Corner Radius (RE) | 0.02″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.0605″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Length Group | 12D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.062″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3/4″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.016
