.093 CARB 7X LOC LONG

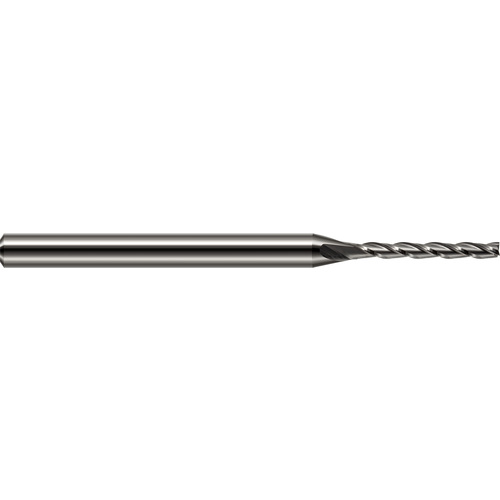

SQ End Mill; 3/32″ Dia. × 0.67″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/32″ | Usable Length (LU) | 0.67″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | 7D |
| Depth of Cut Maximum (APMX) | 0.67″ | Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.093″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.016
