2J1G-20R02
32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: .015″, .031″, .062″, .093″, .125″, .156″, .187″, .250″ R

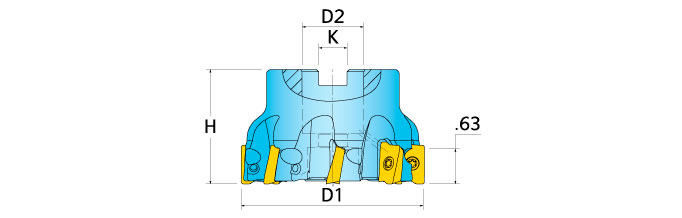

| Cutting Diameter (DC/DCX) | 2″ | Ramping Angle Maximum (RMPX) | 4 Degrees |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.63″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.57″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
Family Description
32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: .015″, .031″, .062″, .093″, .125″, .156″, .187″, .250″ R
Country of Origin
Usa
Shipping Info
Package Weight
0.001
