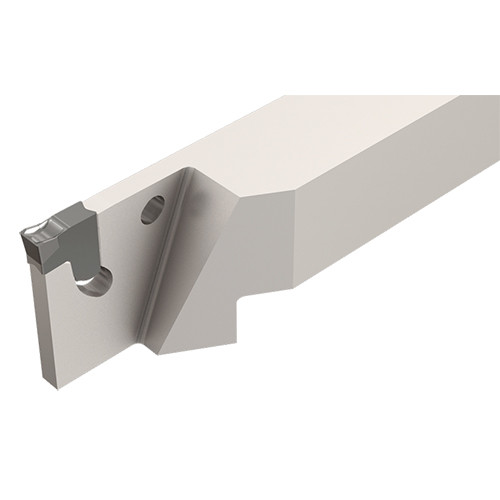

TGTR 12.7-2-IQ
Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

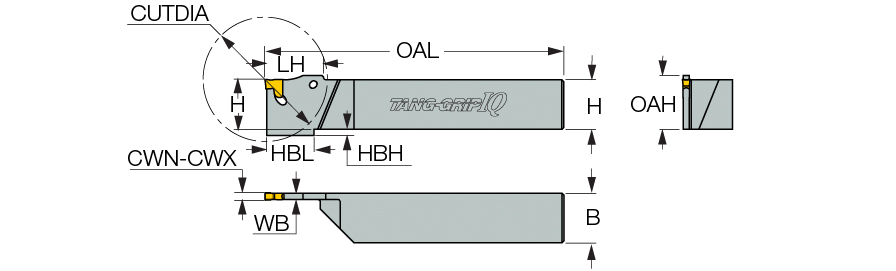

| Shank Height (H) | 1/2″ | Shank Standard | Square |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Body Width (WB) | 0.063″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.071″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.26″ |
| Cutting Width Maximum (CWX) | 0.098″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5.91″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.307″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
Shipping Info
Package Length
6.10000
Package Width
1.20000
Package Height
1.20000
Package Weight
0.423
