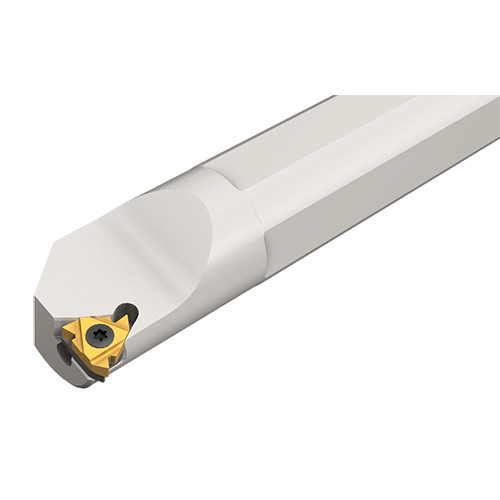

SIR 0010 H11

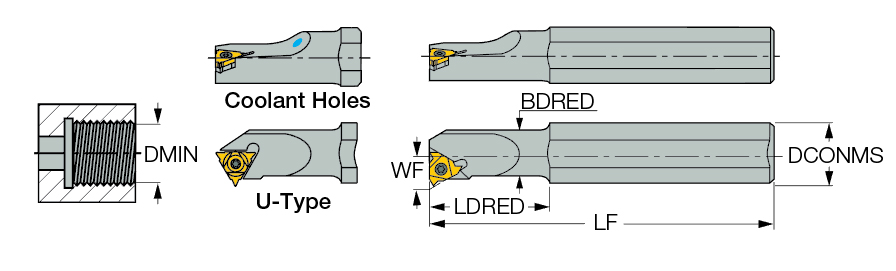

| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | Int. Grooving | Internal Threading lay down | |
| Minimum Bore Diameter (DMIN) | 12 mm | Master Insert Identification (MIID) | 11 IR/IL.. |
| Coolant Supply Property (CSP) | External | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Tool Type | Internal Indexable Threading Tools |
| Cutting Position | Internal | Measurement Type | Metric |
Product Features
| Family Description | Internal threading bars (AD-short bars for adapter holders) | Country of Origin | Israel |
| Remarks | B-steel shank with coolant hole, CB-carbide shank with coolant hole All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied For GTGA inserts, use anvil AI 16-0 |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.154
